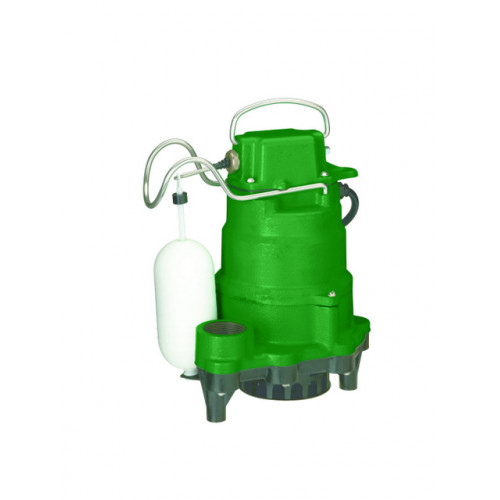

The MCI033 series Myers water pumps are rugged cast iron submersible sump pumps featuring a vortex impeller that provides solids-handling capacity up to 1/2".

Applications

• Basement sumps pumps
• Dewatering
• Light effluent
• Water Transfer


Features

• 1/3 HP
• 2-pole switch design allows for operation in sump diameters in of 10" or more

• Rugged, oil-cooled motor provides continuous bearing lubrication and maximizes heat dissipation
• Lubricated ball bearings and shaft seal for longer service life
• Shaded pole motor eliminates failure-prone switches and relays
• Long-life carbon/ceramic seal protects motor against water leakage
• Heat sensor overload protection with automatic reset when motor cools to safe operating temperature
• Anti-airlock hole in base reduces added labor
• Pump, intake screen volute base, switch and power cord are serviceable


Series Specifications

BODY CONSTRUCTION:  Cast Iron with Fiberglass Reinforced Polypropylene Base

HORSEPOWER:  1/3 HP

MAXIMUM HEAD:  24'

MAXIMUM CAPACITY:  47 GPM

FLOW at 10' LIFT:  40 GPM

SWITCH TYPE:  Vertical Float

SWITCH 'ON' LEVEL:  9"

SWITCH 'OFF' LEVEL:  4"

MINIMUM SUMP DIAMETER:  10"

DISCHARGE PIPE SIZE:  1-1/2" NPT

MAXIMUM SOLIDS HANDLING SIZE:  1/2"

AMP DRAW (FULL LOAD):  9.8 Amps

CORD LENGTH:  20'

VOLTAGE:  115v AC, 60 Hz

MAXIMUM WATER TEMPERATURE:  130F (54C)

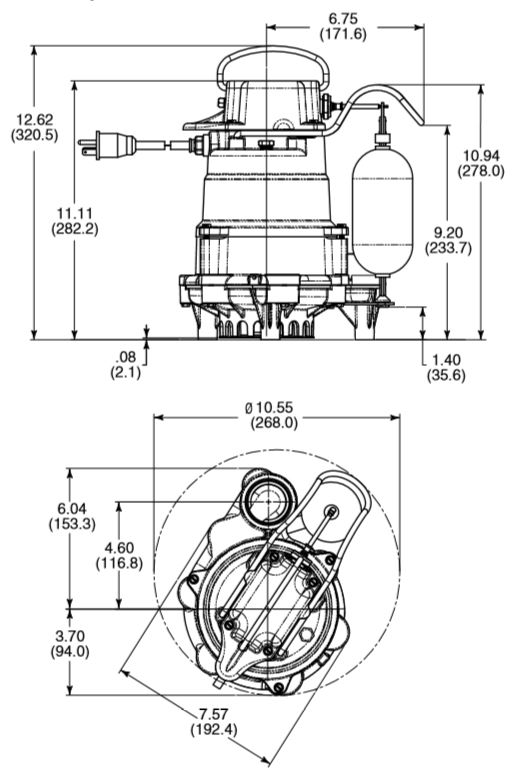

Dimensions

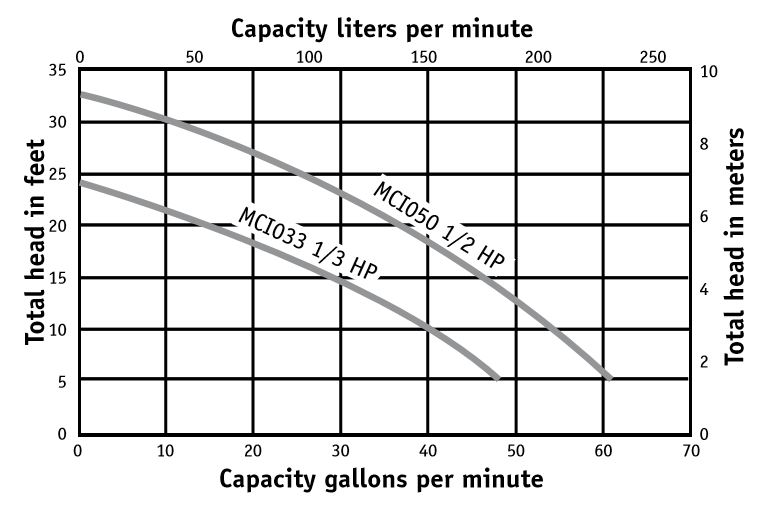

Performance Data

CLICK HERE TO DOWNLOAD TECHNICAL SPECIFICATIONS

CLICK HERE TO DOWNLOAD MANUAL

Warranty Information

Manufacturer's warranty of whichever comes first: 12 months from date of original installation or 24months from date of manufacture
